URx20xI – Gas detectors with 4÷20 mA output and 4 relay outputs – IP65

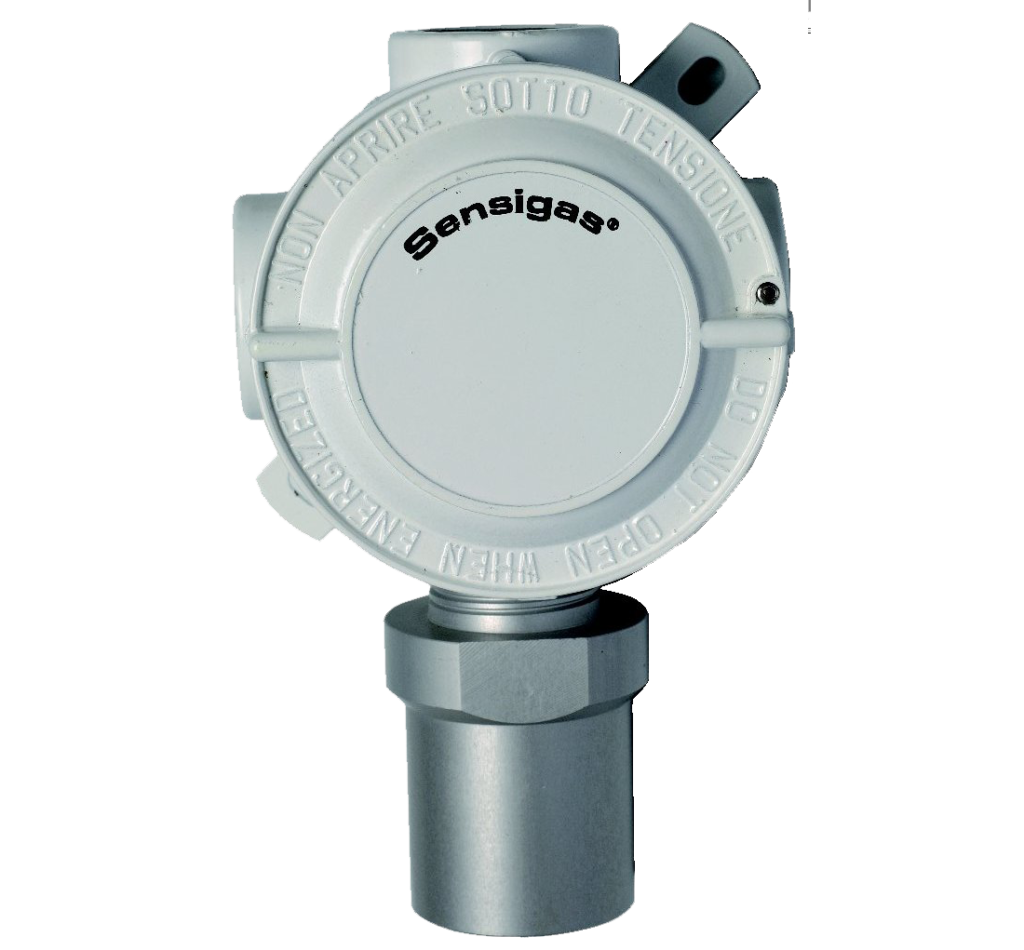

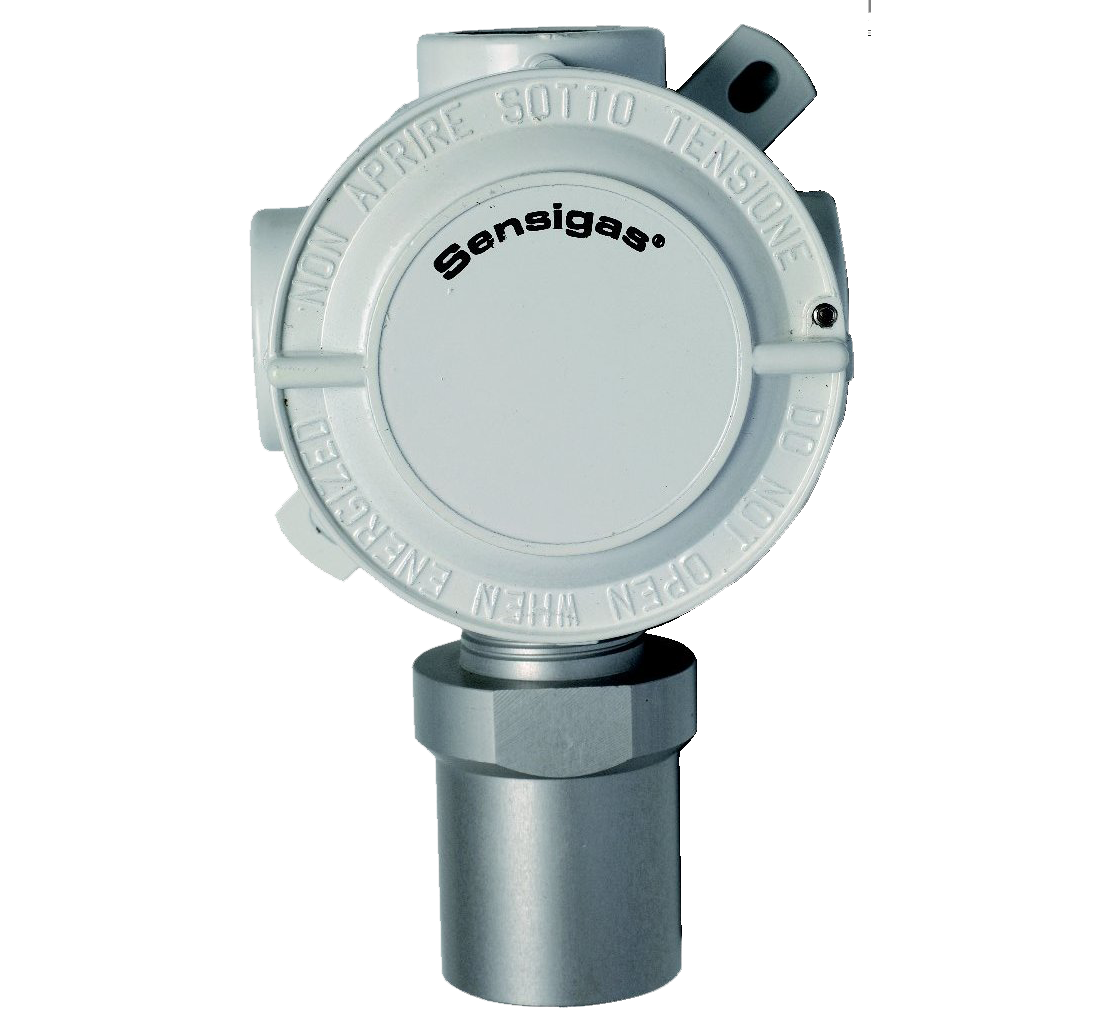

Gas detector in IP65 metal enclosure with operating status LED, to warn of gas alarms through 4÷20 mA analogue output or at threshold limit setpoints (pre-alarm, level 1 and 2 alarms, failure) that can be freely selected using 4 relay outputs (with optional card UZR20.4 ).

Power supply: 11÷28 Vdc
Signal outputs: 4÷20 mA
Command outputs: 4 SPDT relays (with card UZR20.4)
Sensor: S (Standard) or P (Professional)
Protection rating: IP65
Ambient temp.: -20 °C/+50 °C

Please contact head office for any gas not included in the list below

Sensigas URx20xI documentation
Sensigas URD20SI CARBON DIOXIDE documentation
Sensigas URS20SI OXYGEN documentation

URx20PI

Professional sensor(P)

URB20PI GASOLINE VAPOUR (B)
URC20PI PROPANE (C)
URE20PI ETHYL ALCOHOL (E)
URG20PI METHANE (G)
URI20PI HYDROGEN (I)
URL20PI ACETYLENE (L)
URM20PI AMMONIA (M)
URO20PI CARBON MONOXIDE (O)
URP20PI LPG (P)
URT20PI OCTANE (T)

URx20SI

Standard sensor(S)

URB20SI GASOLINE VAPOUR (B)
URC20SI PROPANE (C)
URE20SI ETHYL ALCOHOL (E)
URG20SI METHANE (G)
URI20SI HYDROGEN (I)
URL20SI ACETYLENE (L)
URM20SI AMMONIA (M)
URO20SI CARBON MONOXIDE (O)
URP20SI LPG (P)
URT20SI OCTANE (T)

URD20SI & URS20SI

Standard sensor(S)

URD20SI CARBON DIOXIDE (D)
URS20SI OXIGEN (S)

UZR20.4

Relay card for URx20xx detectors

4 SPDT relays 50 mA at 24Vac/dc 100 mA at 12Vac/dc

UZS20.x

Module with n. 1 opto-isolated resistive output (two wires)

UZS20.E

  • 22KOhm = normal operation
  • 10Kohm = pre-alarm
  • 2,2KOhm = alarm threshold 1
  • open = failure

UZS20.A

  • 27KOhm = normal operation
  • 10KOhm = alarm threshold 1
  • open = failure

UZS20.S

  • 27KOhm = normal operation
  • 0 Ohm = alarm threshold 1
  • open = failure
